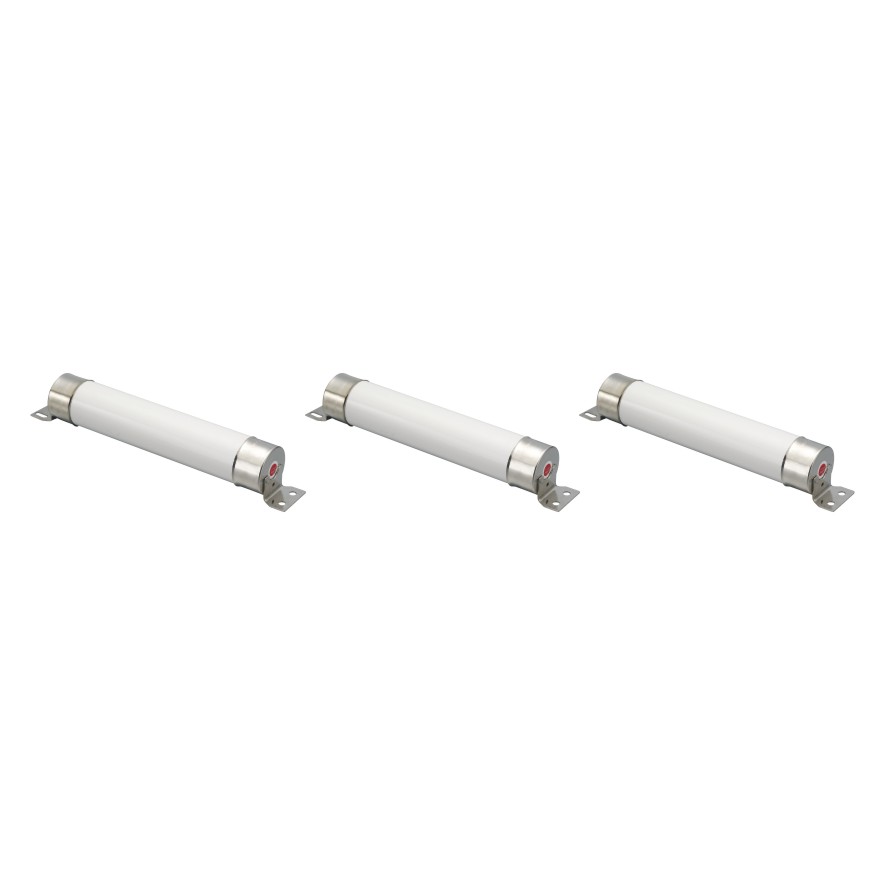

This product is suitable for indoor AC 50 Hz, rated voltage 3.6 kV and 7.2 kV power supply system, and can also be used in conjunction with other protective appliances (such as load switches, vacuum contactors, etc.), as overload or short-circuit protection of high-voltage motors and other power equipment.This series of products conform to GB15166.2 national standard and IEC60282-1 International Electrotechnical Commission standard.
Technical Information
Technical Specification |
|
|
|
|
| |||
Main dimensions | ||||||||
Serial number | Product Model |
| Rated voltage | Turn-on Current (kA) | Rated current | D(mm) | L(mm) | National Standard Model |
093 |
|
|
| 50kA | 50A |
|
| XRNM-3.6kV/50A |
094 |
|
|
| 50kA | 63A |
|
| XRNM-3.6kV/63A |
| WDF·0 |
|
|
|
| 51 |
|
|
095 |
|
|
| 50kA | 80A |
| 254 | XRNM-3.6kV/80A |
096 |
|
|
| 50kA | 100A |
|
| XRNM-3.6kV/100A |
097 |
|
|
| 50kA | 125A |
|
| XRNM-3.6kV/125A |
098 |
|
|
| 50kA | 125A |
|
| XRNM-3.6kV/125A |
| WFF·0 |
| 3.6kV |
|
|
|
|
|
099 |
|
|
| 50kA | 160A |
|
| XRNM-3.6kV/160A |
100 |
|
|
| 50kA | 200A |
|
| XRNM-3.6kV/200A |
101 |
|
|
| 50kA | 250A | 76 | 254 | XRNM-3.6kV/250A |
102 | WKF·0 |
|
| 50kA | 315A |
|
| XRNM-3.6kV/315A |
103 |
|
|
| 50kA | 355A |
|
| XRNM-3.6kV/355A |
104 |
|
|
| 50kA | 400A |
|
| XRNM-3.6kV/400A |
105 |
|
|
| 50kA | 25A |
|
| XRNM-3.6kV/25A |
106 |
|
|
| 50kA | 31.5A |
|
| XRNM-3.6kV/31.5A |
107 |
|
|
| 50kA | 40A |
|
| XRNM-3.6kV/40A |
108 |
|
|
| 50kA | 50A |
|
| XRNM-3.6kV/50A |
109 | WFN·0 |
|
| 50kA | 63A |
|
| XRNM-3.6kV/63A |
110 |
|
|
| 50kA | 80A |
|
| XRNM-3.6kV/80A |
|
|
| 7.2kV |
|
| 76 |
|
|
111 |
|
|
| 50kA | 100A |
| 403 | XRNM-3.6kV/100A |
112 |
|
|
| 50kA | 125A |
|
| XRNM-3.6kV/125A |
113 |
|
|
| 50kA | 160A |
|
| XRNM-3.6kV/160A |
114 |
|
|
| 50kA | 200A |
|
| XRNM-3.6kV/200A |
115 |
|
|
| 50kA | 224A |
|
| XRNM-3.6kV/224A |
| WKN·0 |
|
|
|
|
|
|
|
116 |
|
|
| 50kA | 250A |
|
| XRNM-3.6kV/250A |
117 |
|
|
| 50kA | 315A |
|
| XRNM-3.6kV/315A |
Overall and installation dimensions
